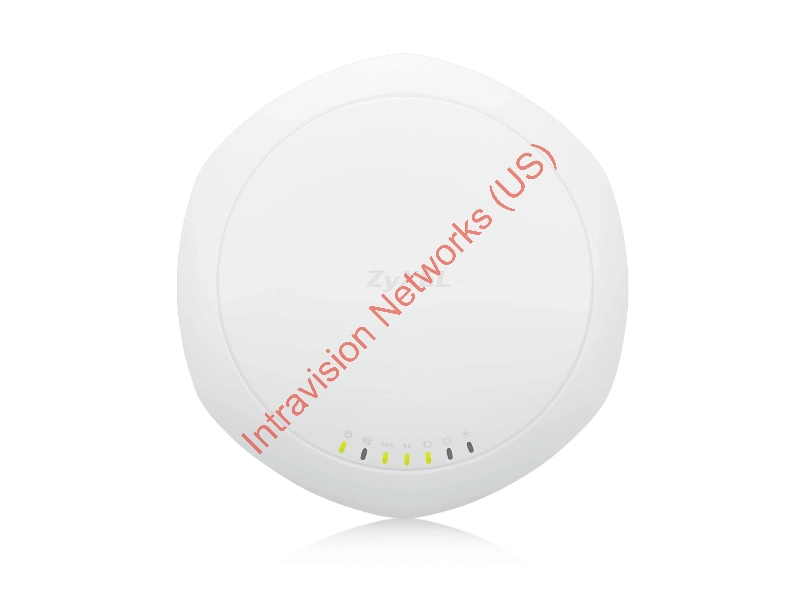

ZyXEL NWA1123-AC PRO 1300Mbit/s Power over Ethernet (PoE) White WLAN access point - Networking device

Best interior Wi-Fi performance in style Struggling between performance and environment cohesion when deploying business wireless APs is in past. The stylish exterior of NWA1120 series is suitable for any interior that not only outperforms but also blends into the interior better as well prevents equipment theft.Optimize for what you need To create a thoroughly enhanced Wi-Fi experience, NWA1120 series made a big move on optimized antennas and RF design via fine-tune software and innovative hardware. Featuring with DCS and load-balance, NWA1120 series delivers smooth and superior Wi-Fi experience in workplaces.Blending multi-operation flexibility with practical business features NWA1120 series provides repeater/root-AP mode compatibility with Zyxel Unified Pro and Unified APs, that users can extend wireless connectivity via enterprise grade WDS to difficult cabling locations without the bother of troublesome cabling. Also, as an ideal solution, NWA1120 series offers an array of practical features like multiple SSID and solid Wi-Fi security.Setup and forget The refreshed NWA1120 series features streamline controller-less deployment. Out of the box and finish three steps configuration with ZON then NWA1120 series capable of operating autonomously without extra computer or special management tool as well as allowing administrator easy monitor via any SNMP tool in hand, even not a networking expert can handle it easily.

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Data transfer rate (max)	1300 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Receiver sensitivity	-102 dBm
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11n,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3au,IEEE 802.3az,IEEE 802.3u
Modulation	16-QAM,64-QAM,256-QAM,BPSK,QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Channel bandwidth	80 MHz
Certification	FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002 FCC part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1, BSMI CNS14336-1
Data transfer rate (max)	1300 Mbit/s
Wireless LAN features
Modulation	16-QAM,64-QAM,256-QAM,BPSK,QPSK
Networking
Internal	No
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11n,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3au,IEEE 802.3az,IEEE 802.3u
Protocols
DHCP client	Yes
Bandwidth
Channel bandwidth	80 MHz
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Security
SSID Broadcast on/off	Yes
Number of SSID support	16
Security algorithms	802.1x RADIUS,EAP-AKA,EAP-FAST,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,SNMP,SSH,WEP,WPA,WPA2-Enterprise,WPA2-PSK
MAC address filtering	Yes
Management features
VLAN support	Yes
Packaging data
Package width	240 mm
Package depth	235 mm
Package height	100 mm
Package weight	1.21 kg
Antenna
Antenna gain level (max)	5 dBi
Certificates
Certification	FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002 FCC part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1, BSMI CNS14336-1
Power
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Colour of product	White
Internal	No
Technical details
Receiver sensitivity	-102 dBm
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Package width	240 mm
Width	203.9 mm
Package depth	235 mm
Depth	191.7 mm
Package height	100 mm
Weight	445 g
Package weight	1.21 kg
Height	34.7 mm
