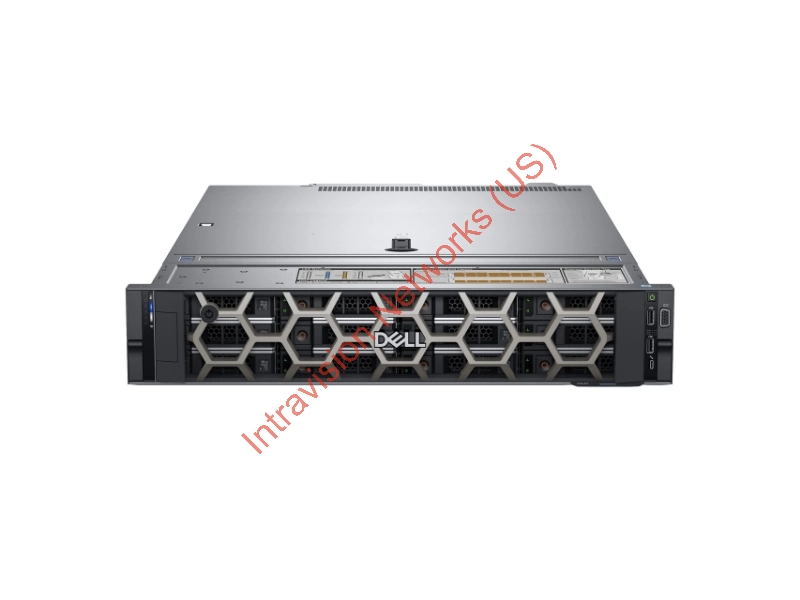

DELL PowerEdge R540 2.1GHz Rack (2U) 4110 IntelXeon750W server system
MSRP:
-You Save:
Request for Quote
Request a quote below or call (786) 840 0395 for further assistance with this part number
Get exclusive discounts on bulk orders
Power your applications with a versatile 2-socket rack serverSatisfy a variety of applications with the flexible PowerEdge R540. Its balanced combination of resources, expandability and affordability adapt to the changing demands of a modern data center. Optimize your application performance with one-button tuning. Scale for future requirements with up to 14 x 3.5" drives. Embedded diagnostics and SupportAssist help to maximize uptime without added effort, in a worry-free environment.Achieve performance at scale with the PowerEdge portfolioOur modern compute platforms are built to scale easily and take advantage of technologies that lift application performance. The PowerEdge R540 rack server combines affordably and versatility, so you can adapt to a variety of applications and meet future demands.- Scale compute resources with the Intel® Xeon® Scalable processor family that delivers a 27% increase in processing cores and 50% increase in bandwidth over the previous generation of processors.*- Optimize application performance with one-button tuning.- Enable storage flexibility with up to 14 x 3.5" drives.- Free up storage with boot-optimized M.2 SSDs.Gain productivity with intelligent, embedded managementDell EMC OpenManage intelligent automation enables you to spend less time on routine maintenance so you can focus on business-critical priorities.- Help maximize uptime with proactive diagnostics and automated remediation that increase productivity up to 90%.- Leverage e
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 85 W |
| Tcase | 77 °C |
| Supported instruction sets | AVX,AVX 2.0,AVX-512,SSE4.2 |
| Scalability | 2S |
| Processor threads | 16 |
| Processor package size | 76 x 56.5 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Memory types supported by processor | LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory channels supported by processor | Hepta |
| Maximum number of PCI Express lanes | 48 |
| Maximum internal memory supported by processor | 768 GB |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| ECC supported by processor | Yes |
| Processor cache type | L3 |
| Processor cache | 11 MB |
| Conflict Free processor | Yes |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3 GHz |
| Number of processors installed | 1 |
| Processor model | 4110 |
| Processor socket | LGA 3647 |
| Processor cores | 8 |
| Processor family | Intel® Xeon® |
| Memory | |
| Internal memory | 16 GB |
| Memory slots | 16 |
| Memory clock speed | 2667 MHz |
| Maximum internal memory | 512 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Storage | |
| Supported RAID controllers | PERC H730P+ |
| Total storage capacity | 120 GB |
| Supported hard disk drive sizes | 3.5" |
| RAID support | Yes |
| Internal drive bays | 8 |
| Hot-Plug support | Yes |
| Networking | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack rails | Yes |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Performance | |
| Compatible operating systems | Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Remote administration | iDRAC9 Exp |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Operating system installed | No |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 123547 |
| Power | |
| Redundant power supply (RPS) support | No |
| Power supply | 750 W |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Supported hard disk drive sizes | 3.5" |
| Rack rails | Yes |
| Rack mounting | Yes |
| Hot-Plug support | Yes |
| Chassis type | Rack (2U) |
| Management features | |
| Remote administration | iDRAC9 Exp |
| Weight & dimensions | |
| Depth | 693.8 mm |
- Technology: DDR4
- Processing Speed: 2.1Ghz
- Anything which is certainly not a 3D memory product once processed can't be returned for credit or cancelled. Restocking fee of minimum up to 25% can be charged on certain products which varies from product to product.
- All product by default go to check in refurbished condition unless changed to new retail. All products comes with 30 days warranty and manufacturer warranty remains intact if applicable.
- This item can be dispatched in 3-4 business days or based on the availability. Please check with our customer support (786)-840-0395 if you need the item to be shipped same day.
- Please note that most of the large manufacturers (e.g. HP, Dell, IBM, Compaq,) part numbers which have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (FRU#'s) for their products. When you receive the part, it may display this FRU # or Spare P/N# on it. You can simply reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If any assistance needed in this regard please call our Sales Department.
- This part number has 30 days limited DOA exchange warranty for replacement only with the same part. A few drives may have 90 days warranty which you can confirm. The item might have other warranties like manufacturer, service, or extended warranty that you can affirm with the sales department.
- All equipment sold are bulk equipment without any drivers and cd included. If you need a driver or CD installation for a particular part/item please call to confirm availability.
- Our online shipping calculator is based to compute shipping for memory, hard drive and different items that are under 5 lbs. It may not calculate the right shipping cost of items that are in excess of 5 lbs. Kindly call us to confirm before you submit the order for items that are heavyweight in shipping. If you submitted the order by mistake you will receive an email or call from our customer service department with the right shipping charges. Some of the items that come in this class are motherboards, servers, racks.
- Item pictures are only for illustrative purposes therefore the delivered product might differ from the one displayed above.
- At times, packaging can vary from OEM/original retail box. They are packaged together for bulk orders.
- Orders of end of life (EOL) products or end of sale (EOS) that are no longer in production can be replaced by a compatible item with the exact FRU number performing same functionality.
- Refurbished printers might not have laser toners or full ink cartridges.
- Please note if you have question about any of the above conditions or have any concerns, we suggest you to contact us on support@intravisionetworks.com or call (786)-840-0395 before submitting an order.
