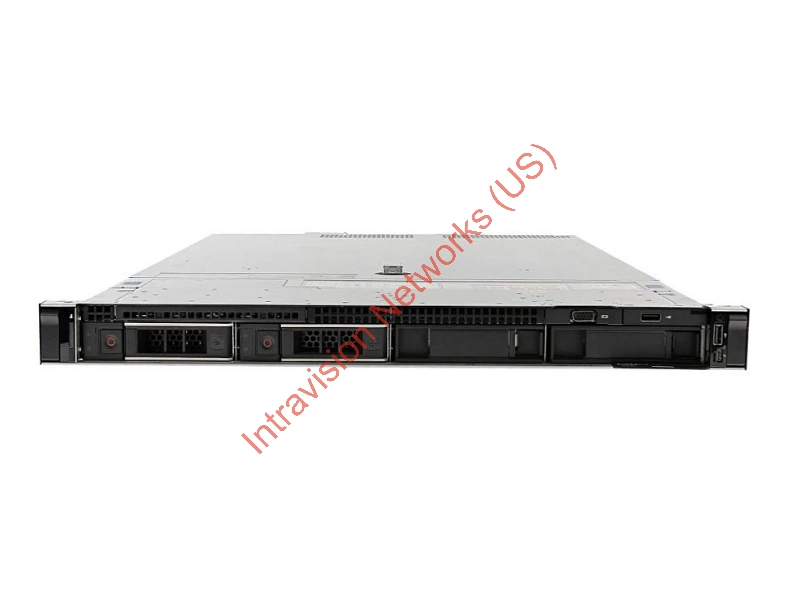

DELL PowerEdge R230 3GHz Rack (1U) E3-1220V5 IntelXeonE3 v5 250W server system

Get organized and become more productive.- Consolidate data from multiple laptops or desktops onto a single server with up to 4 x internal 3.5" cabled or hot-plug HDD.- Ensure fast response times with the latest Intel® Xeon® processor E3-1200 v5 product family.- Adapt to changing workload conditions with a virtualization-ready server supporting Citrix® XenServer®, Microsoft® Windows Server® with Hyper-V®, VMware® vSphere® ESXi®, and Red Hat® Enterprise Virtualization.Accelerate application performance- Drive greater memory performance and expand capacity up to 64GB through time with 4 x DIMM slots and DDR4 memory, which transfer data 33% faster than previous-generation DDR3.- Boost data throughput with 2 x PCIe Gen 3.0 slots driving 2x data throughput compared to Generation 2.0.- Drive 2x IOPS performance with the PowerEdge PERC9 RAID Controller compared to the previous-generation PowerEdge R220 equipped with PERC8.Reliable, worry-free operation- Deploy rapidly and turn the server over for productive work sooner with Dell OpenManage systems management solutions.- Easily monitor system health and behavior with a simple, intuitive Dell OpenManage Essentials console.- Save IT administrator time by automating firmware updates — up to 92% reduction in firmware update time using Repository Manager auto-updates compared to manual updates.Dell ProSupportChoose Dell’s premium support service, ProSupport, for 24/7 direct telephone and onli

Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	80 W
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Stepping	R0
Scalability	1S
Processor threads	4
Processor package size	37.5 x 37.5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Processor code	SR2LG
PCI Express configurations	1x16,1x8+2x4,2x8
Memory voltage supported by processor	1.35 V
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory channels supported by processor	Dual
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum number of PCI Express lanes	16
Maximum internal memory supported by processor	64 GB
Idle States	Yes
Graphics & IMC lithography	14 nm
Execute Disable Bit	Yes
Embedded options available	No
ECC supported by processor	Yes
Bus type	QPI
Processor cache type	Smart Cache
Processor cache	8 MB
Conflict Free processor	Yes
Processor series	Intel Xeon E3-1200 v5
Processor frequency	3 GHz
Processor boost frequency	3.5 GHz
Number of processors installed	1
Processor model	E3-1220V5
System bus rate	8 GT/s
Supported processor sockets	LGA 1151 (Socket H4)
Processor socket	LGA 1151 (Socket H4)
Processor cores	4
Processor manufacturer	Intel
Motherboard chipset	Intel® C236
Maximum number of SMP processors	1
Compatible processor series	Intel® Celeron®, Intel® Pentium®
Processor family	Intel® Xeon® E3 v5
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	4 x DIMM
Memory clock speed	2400 MHz
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Storage
Supported RAID controllers	PERC H330
Total storage capacity	600 GB
Number of hard drives installed	2
Hard drive speed	15000 RPM
Hard drive capacity	300 GB
Supported hard disk drive sizes	3.5"
Solid-state drive interface	SAS, Serial ATA III
RAID support	Yes
RAID levels	0, 1, 5, 10, 50
Number of hard drives supported	4
Internal drive bays	4
Hot-Plug support	Yes
Hard drive size	2.5"
Hard drive interface	Serial Attached SCSI (SAS)
Networking
Wake-on-LAN ready	Yes
LAN controller	Broadcom BCM5720
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.0 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	2
USB 2.0 ports quantity	2
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
Expansion slots
PCI Express x4 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express slots version	3.0
PCI Express x8 (Gen 3.x) slots	1
Optical drive
Optical drive type	DVD±RW
Design
Rack rails	Yes
Rack mounting	Yes
Optical drive type	DVD±RW
Chassis type	Rack (1U)
Performance
Compatible operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 (x64) Red Hat Enterprise Linux VMware Vsphere 2015 SUSE Linux Enterprise Server
Remote administration	iDRAC8 Basic
Performance management	IPMI 2.0, Dell OpenManage
Operating system installed	No
Software
Compatible operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 (x64) Red Hat Enterprise Linux VMware Vsphere 2015 SUSE Linux Enterprise Server
Operating system installed	No
Processor special features
Intel® Wireless Display (Intel® WiDi)	No
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel® Quick Sync Video Technology	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel Clear Video Technology	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	88172
CPU configuration (max)	1
Power
Number of main power supplies	1
Power supply input frequency	50 - 60
Power supply	250 W
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	10 - 35 °C
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Supported processor sockets	LGA 1151 (Socket H4)
Supported hard disk drive sizes	3.5"
Rack rails	Yes
Rack mounting	Yes
Hot-Plug support	Yes
Ethernet interface type	Gigabit Ethernet
CPU configuration (max)	1
Chassis type	Rack (1U)
PCI Express x8 (Gen 3.x) slots	1
Packaging content	PCIe Riser with Fan
Number of 3.5" bays	4
Management features
Remote administration	iDRAC8 Basic
Performance management	IPMI 2.0, Dell OpenManage
Weight & dimensions
Width	434 mm
Weight	8.77 kg
Height	42.8 mm
Depth	495 mm
Packaging content
Packaging content	PCIe Riser with Fan
Cables included	AC
Other features
CPU configuration (max)	1

• Technology: DDR4
• Processing Speed: 3Ghz

1. Anything which is certainly not a 3D memory product once processed can't be returned for credit or cancelled. Restocking fee of minimum up to 25% can be charged on certain products which varies from product to product.
2. All product by default go to check in refurbished condition unless changed to new retail. All products comes with 30 days warranty and manufacturer warranty remains intact if applicable.
3. This item can be dispatched in 3-4 business days or based on the availability. Please check with our customer support (786)-840-0395 if you need the item to be shipped same day.
4. Please note that most of the large manufacturers (e.g. HP, Dell, IBM, Compaq,) part numbers which have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (FRU#'s) for their products. When you receive the part, it may display this FRU # or Spare P/N# on it. You can simply reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If any assistance needed in this regard please call our Sales Department.
5. This part number has 30 days limited DOA exchange warranty for replacement only with the same part. A few drives may have 90 days warranty which you can confirm. The item might have other warranties like manufacturer, service, or extended warranty that you can affirm with the sales department.
6. All equipment sold are bulk equipment without any drivers and cd included. If you need a driver or CD installation for a particular part/item please call to confirm availability.
7. Our online shipping calculator is based to compute shipping for memory, hard drive and different items that are under 5 lbs. It may not calculate the right shipping cost of items that are in excess of 5 lbs. Kindly call us to confirm before you submit the order for items that are heavyweight in shipping. If you submitted the order by mistake you will receive an email or call from our customer service department with the right shipping charges. Some of the items that come in this class are motherboards, servers, racks.
8. Item pictures are only for illustrative purposes therefore the delivered product might differ from the one displayed above.
9. At times, packaging can vary from OEM/original retail box. They are packaged together for bulk orders.
10. Orders of end of life (EOL) products or end of sale (EOS) that are no longer in production can be replaced by a compatible item with the exact FRU number performing same functionality.
11. Refurbished printers might not have laser toners or full ink cartridges.
12. Please note if you have question about any of the above conditions or have any concerns, we suggest you to contact us on support@intravisionetworks.com or call (786)-840-0395 before submitting an order.

No reviews to show!
